Product Description:

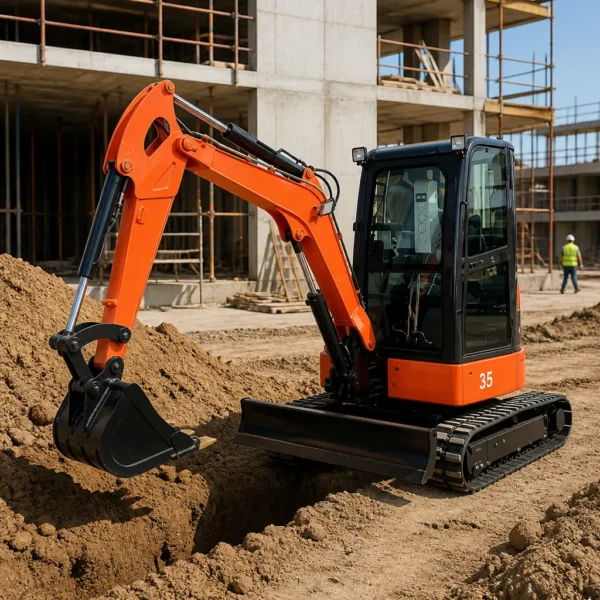

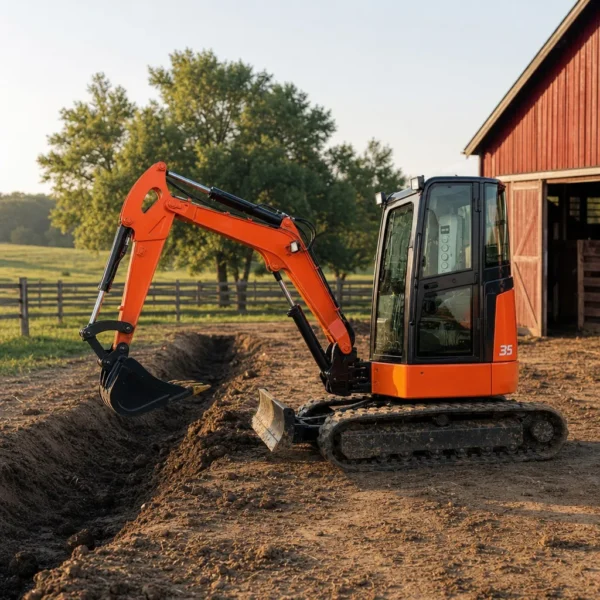

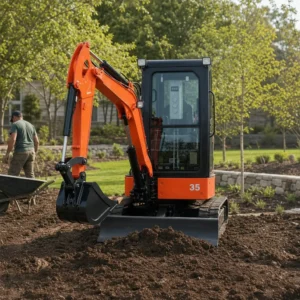

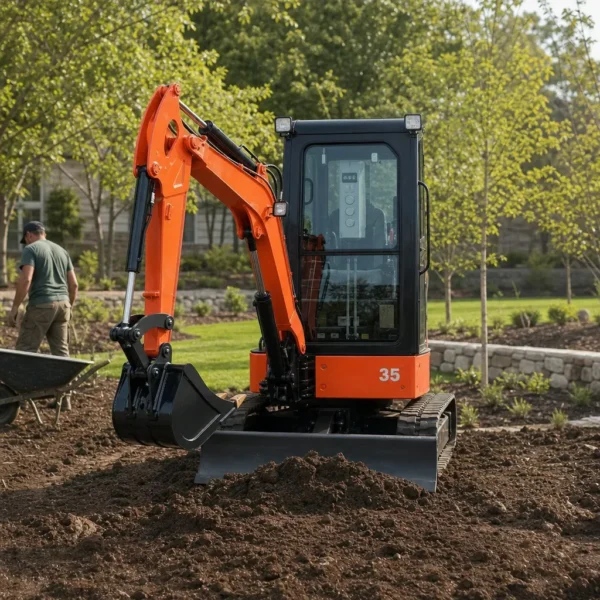

HSE-35 (2.55-ton Side Swing Boom, Yanmar 3TNV80F, 32MPa High-Pressure System)

The Hongshan HSE-35 flagship mini excavator features a 45°/15° side swing boom, a Yanmar 3TNV80F hydraulic system, 32 MPa ultra-high-pressure hydraulics, and a 4.52-meter ultra-large digging radius.

Product Overview and Key Selling Points:

The HSE-35 is specifically designed for overseas municipal pipeline networks and confined space operations, featuring a core function of side swing (45° left swing / 15° right swing). Without rotating the chassis, it can dig straight down close to building walls, fences, and road railings, completely eliminating the pain point of working in dead angles.

Equipped with a Japanese-made Yanmar 3TNV80F three-cylinder water-cooled diesel engine, meeting Euro 5/EPA emission standards, it boasts low fuel consumption and supports cold starts in extremely cold conditions. It features a 32 MPa ultra-high pressure load-sensitive hydraulic system and pilot handle, ensuring smooth and seamless compound movements. Featuring a ROPS/FOPS certified panoramic enclosed heated cabin, it has a maximum digging radius of 4520 mm, easily facilitating cross-vehicle loading and unloading, and its performance leads its class.

Main Technical Parameters:

Curb Weight: 2550 kg
Boom Mechanism: Side Swing (Left 45° / Right 15°)

Engine: Yanmar 3TNV80F (14.6 kW / 2400 rpm, Euro 5 / EPA)

System Pressure: 32 MPa ultra-high pressure hydraulic system (piloted dual control levers)

Maximum Digging Depth / Radius: 2456 mm / 4520 mm

Maximum Digging Height / Unloading Height: 4155 mm / 2840 mm

Bulldozer Blade Dimensions: Width 1500 mm × Height 285 mm (Lifting 235 mm / Cutting Depth 350 mm)

Cockpit Configuration: Fully enclosed panoramic glass cab, air conditioning with heating and defrosting, shock-absorbing seat

Applicable Fields: Trenching close to the base of buildings and the edge of walls; construction along the edges of urban underground pipelines; excavation of gas and water supply pipelines; and heavy-duty operations in exquisite gardens and narrow working conditions.
